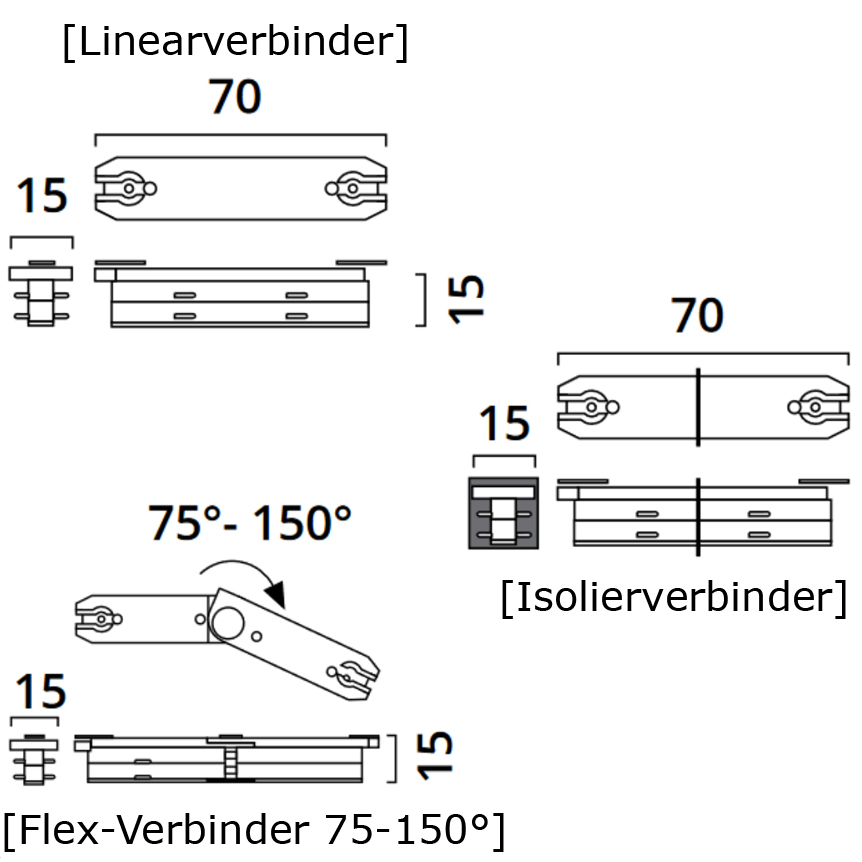

Top Light Mini Track (4) Linear connectors

Mini Track - one track countless possibilities (2) Profile

---

Easy to plan, fast to implement - and quick to install. The Mini Track system by Top Light illuminates regular as well as angled room situations optimally and individually. This track system is both well thought-out and variable, so that every room shape can be optimally illuminated according to lighting ideas. The 4 colours to choose from allow creative freedom and create a variety of possibilities in addition to the 25 different light heads. In addition, the high-quality profile can be shortened as required.

The track system consists of different components, which you can combine and assemble according to your needs. You can find more components here.

Come and see the individual track system Mini Track by Top Light in our showroom.

Basics 2 Track

Profile/track / Colour / L mm / W mm / H mm / Article no.
2 phases / chrome / 1000 / 18 / 18 / 33-102-cr
2 phases / white / 1000 / 18 / 18 / 33-102-w
2 phases / black / 1000 / 18 / 18 / 33-102-b
2 phases / natural anodised / 1000 / 18 / 18 / 33-102-s
2 phases / chrome / 2000 / 18 / 18 / 33-103-cr
2 phases / white / 2000 / 18 / 18 / 33-103-w
2 phases / black / 2000 / 18 / 18 / 33-103-b
2 phases / natural anodised / 2000 / 18 / 18 / 33-103-s
2 phases / white / 2950 / 18 / 18 / 33-104-w
2 phases / black / 2950 / 18 / 18 / 33-104-b
2 phases / natural anodised / 2950 / 18 / 18 / 33-104-s

Mini Track - one track countless possibilities
Simply planned, quickly realised and easily installed. The Mini Track track system made by Top Light offers optimum and individual lighting for regular and angular room conditions. This track system is both cleverly designed and variable. It allows optimum illumination of every room shape in accordance to the lighting idea. 4 available colours offer creative freedom and create a wide range of possibilities in combination with 25 different light heads. In Addition, it is possible to cut the high-quality profiles to length as required.

This track system is made up of different modules that can be combined and assembled according to your needs. Further components can be found here.

Please visit us and take a look at the individual track system Mini Track by Top Light in our showroom.

Basics 1 End cap

End cap Colour L mm W mm H mm Article no.
for rail    silver   18      18        18       33-105-s
for rail    white   18      18        18       33-105-w
for rail    black   18      18        18       33-105-b

Simple to plan, quick to implement and easy to install. Top Light's track system Mini Track is ideal for illuminating both - normal and angled room conditions - in an optimal and individual way. This rail system is as well thought-out as it is variable, enabling perfect illumination of every room shape in accordance with the lighting idea. Four available colours offer creative freedom and create a variety of possibilities in addition to the 25 different light heads. Furthermore, the high-quality profile can be shortened as required.

The track system consists of different components which can be combined and assembled according to your needs.

NEW Top Light Mini Track (3) Cord suspension

Simple to plan, quick to implement and easy to install. The Mini Track track system by Top Light enables both regular and angled room situations to be illuminated optimally and individually. This track system is both cleverly designed and variable, allowing any shape of room to be ideally illuminated according to the lighting idea. Four selection colours offer creative freedom and, in addition to the 25 different lighting heads, also create a wide range of possibilities. Furthermore, the high-quality profile can be cut to length as required.

The track system consists of different components which can be combined and assembled according to your needs.

Please come and have a look at the individual track system Mini Track by Top Light in our showroom.

Easy to plan, quick to implement and simple to install. Top Light's track system Mini Track is ideal for illuminating both, regular and irregular room conditions optimally and individually. This track system is as well sophisticated as variable. So that every room form according to the lighting idea is illuminated perfectly. The four available colours offer creative freedom and, in addition to the 25 different light heads, create a wide range of possibilities. The high-quality profiles can also be shortened as required.


Simple to plan, quick to implement and easy to install. Top Light's track system Mini Track is ideal for illuminating both - normal and angled room conditions - in an optimal and individual way. This rail system is as well thought-out as it is variable, enabling perfect illumination of every room shape in accordance with the lighting idea. Four available colours offer creative freedom and create a variety of possibilities in addition to the 25 different light heads. Furthermore, the high-quality profile can be shortened as required.

The track system consists of different components which can be combined and assembled according to your needs.


NEW Top Light Mini Track (7) Central feed

Simple planning, fast implementation and effortless installation. The Mini Track track system by Top Light offers optimum and individual lighting for both regular and angled room situations. Designed to be both sophisticated and variable, the track system can be used to optimally illuminate any room shape, depending on the lighting idea. Four different colours offer creative freedom and create a wide range of possibilities in addition to the 25 different light heads. The high-quality profile can also be shortened as required.

The track system consists of different components, which you can combine and assemble according to your needs.

Please feel free to visit our showroom and have a look at the individual track system Mini Track by Top Light.

Simple to plan, quick to implement and easy to install. Top Light's track system Mini Track is ideal for illuminating both - normal and angled room conditions - in an optimal and individual way. This rail system is as well thought-out as it is variable, enabling perfect illumination of every room shape in accordance with the lighting idea. Four available colours offer creative freedom and create a variety of possibilities in addition to the 25 different light heads. Furthermore, the high-quality profile can be shortened as required.

The track system consists of different components which can be combined and assembled according to your needs.

Top Light Mini Track Basics 9 T-connectors


Variante	Farbe	L mm	W mm	H mm	Article no.
T-connector	chrome	130	65	18	33-113-cr
T-connector	white	130	65	18	33-113-w
T-connector	black	130	65	18	33-113-b
T-connector	anodised natural	130	65	18	33-113-s

Simple to plan, quick to implement and easy to install. Top Light's track system Mini Track is ideal for illuminating both - normal and angled room conditions - in an optimal and individual way. This rail system is as well thought-out as it is variable, enabling perfect illumination of every room shape in accordance with the lighting idea. Four available colours offer creative freedom and create a variety of possibilities in addition to the 25 different light heads. Furthermore, the high-quality profile can be shortened as required.

The track system consists of different components which can be combined and assembled according to your needs.

NEW Top Light Mini Track (9a) Cross connector


Variant	Colour	L mm	W mm	H mm	Article no.
Cross connector	chrome	130	130	18	33-114-cr
Cross connector	white	130	130	18	33-114-w
Cross connector	black	130	130	18	33-114-b
Cross connector	natural anoised	130	130	18	33-114-s

Simple to plan, quick to implement and easy to install. Top Light's track system Mini Track is ideal for illuminating both - normal and angled room conditions - in an optimal and individual way. This rail system is as well thought-out as it is variable, enabling perfect illumination of every room shape in accordance with the lighting idea. Four available colours offer creative freedom and create a variety of possibilities in addition to the 25 different light heads. Furthermore, the high-quality profile can be shortened as required.

The track system consists of different components which can be combined and assembled according to your needs.

Top Light Mini Track Basics 11 End feed


Variant	Colour	L mm	W mm	H mm	Article no.
End feed	chrome	180	18	18	33-115-cr
End feed	white	180	18	18	33-115-w
End feed	black	180	18	18	33-115-b
End feed	natural anoised	180	18	18	33-115-s

Simple to plan, quick to implement and easy to install. Top Light's track system Mini Track is ideal for illuminating both - normal and angled room conditions - in an optimal and individual way. This rail system is as well thought-out as it is variable, enabling perfect illumination of every room shape in accordance with the lighting idea. Four available colours offer creative freedom and create a variety of possibilities in addition to the 25 different light heads. Furthermore, the high-quality profile can be shortened as required.

The track system consists of different components which can be combined and assembled according to your needs.

Top Light Mini Track (10) Blind cover


Variant	Colour	L mm	W mm	H mm	Article No.
Blindcover	chrome	100	18	3	33-123-cr
Blindcover	white	100	18	3	33-123-w
Blindcover	black	100	18	3	33-123-b
Blindcover	natural anodised	100	18	3	33-123-s

Simple to plan, quick to implement and easy to install. Top Light's track system Mini Track is ideal for illuminating both - normal and angled room conditions - in an optimal and individual way. This rail system is as well thought-out as it is variable, enabling perfect illumination of every room shape in accordance with the lighting idea. Four available colours offer creative freedom and create a variety of possibilities in addition to the 25 different light heads. Furthermore, the high-quality profile can be shortened as required.

The track system consists of different components which can be combined and assembled according to your needs.

Top Light Mini Track Basics 12 Cable feed with or without canopy


Cable feed	Colour	L mm	W mm	H mm	Article no.
canopy	chrome	80	80	2000	33-120-cr
canopy	white	80	80	2000	33-120-w
canopy	black	80	80	2000	33-120-b
canopy	natural anodised	80	80	2000	33-120-s
Cable feed
without canopy	chrome	18	18	2000	33-121-cr
without canopy	white	18	18	2000	33-121-w
without canopy	black	18	18	2000	33-121-b
without canopy	natural anodised	18	18	2000	33-121-s

Easy to plan, fast to implement and simple to install. The Mini Track rail system by Top Light enables you to illuminate regular as well as angular room conditions optimally and individually. This track system is both cleverly designed and variable. Any shape of room can be optimally illuminated according to the lighting idea. The four available colors offer creative freedom and 25 different light heads as well as a wide range of possibilities. Additionally, the high quality profiles can be cut to the required length.

The rail system is composed of different elements, which can be combined and assembled according to your needs.

Please visit us and have a look at the individual track system Mini Track by Top Light in our showroom.

Simple to plan, quick to implement and easy to install. The Mini Track track system by Top Light enables both regular and angled room situations to be illuminated optimally and individually. This track system is both cleverly designed and variable, allowing any shape of room to be ideally illuminated according to the lighting idea. Four selection colours offer creative freedom and, in addition to the 25 different lighting heads, also create a wide range of possibilities. Furthermore, the high-quality profile can be cut to length as required.

The track system consists of different components which can be combined and assembled according to your needs.

Please come and have a look at the individual track system Mini Track by Top Light in our showroom.

Simple planning, fast implementation and easy installation. The Mini Track rail systems by Top Light are ideal for optimal and individual illumination of both regular as well as angled room conditions. The rail system is equally well thought-out and variable, so that, depending on the lighting idea, any shape of room is optimally illuminated. Four selection colors provide freedom of design and in addition to the 25 different light heads they create a variety of possibilities. The high-quality profiles can be shortened as required.

The track system is composed of different components, which can be combined and assembled according to your needs.

Please visit us and have a look at the individual track system Mini Track by Top Light in our showroom.

Top Light Mini Track light fixture Nemo Pendula

Article characteristics:
LED: A+ Lumen: ~713 Kelvin: ~ 2.700 Watt: 8 Watt

Easy to plan, quick to implement and effortless to install. The Mini Track track system by Top Light enables both, regular and angled room situations to be optimally and individually illuminated. This rail and track system is both cleverly designed and variable, so that any shape of room can be illuminated perfectly according to the lighting idea. The four selection colours allow creative freedom and, in addition to the 25 different light heads, create a wide range of possibilities. The high-quality profile can also be shortened as required.

The rail system consists of different components which can be combined and assembled according to your needs.

You are welcome to visit us in our showroom and have a look at the individual track system Mini Track by Top Light.

Top Light Mini Track light fixture Puk Iglo
Article characteristics:
LED: A+ Lumen: ~480 Kelvin: ~ 3,000 Watt: 5 Watt

Variant      Colour      Ø mm   H mm   Article no.
Iglo           chrome     90        96         0101-MT
Iglo           nickematt  90        96         0201-MT

Adapter colour white: A black: B silver: C chrome: D

Simple to plan, quick to implement and easy to install. Top Light's track system Mini Track is ideal for illuminating both - normal and angled room conditions - in an optimal and individual way. This rail system is as well thought-out as it is variable, enabling perfect illumination of every room shape in accordance with the lighting idea. Four available colours offer creative freedom and create a variety of possibilities in addition to the 25 different light heads. Furthermore, the high-quality profile can be shortened as required.

The track system consists of different components which can be combined and assembled according to your needs

Top Light Mini Track - Puk Side Twin

Item details:

LED: A+

Lumen: ~2400

Kelvin: ~ 2.800

Watt: 4x8 Watt



Variant	Colour	Ø mm	H mm	Artikle No.
Puk Side Twin	chrome matte	80	160	2-0841-LED-MT
Puk Side Twin	chrome	80	160	2-0842-LED-MT
Puk Side Twin	nickel matte	80	160	2-0843-LED-MT
Puk Side Twin	white/chrome	80	160	2-0844-LED-MT
Puk Side Twin	black/chrome	80	160	2-0845-LED-MT
Puk Side Twin	anthracite/chrome	80	160	2-0847-LED-MT



Adapter Colour

white: A

black: B

silver: C

chrome: D

Mini Track - one track countless possibilities (2) Profile

---

Easy to plan, fast to implement - and quick to install. The Mini Track system by Top Light illuminates regular as well as angled room situations optimally and individually. This track system is both well thought-out and variable, so that every room shape can be optimally illuminated according to lighting ideas. The 4 colours to choose from allow creative freedom and create a variety of possibilities in addition to the 25 different light heads. In addition, the high-quality profile can be shortened as required.

The track system consists of different components, which you can combine and assemble according to your needs. You can find more components here.

Come and see the individual track system Mini Track by Top Light in our showroom.

Basics 2 Track

Profile/track / Colour / L mm / W mm / H mm / Article no.
2 phases / chrome / 1000 / 18 / 18 / 33-102-cr
2 phases / white / 1000 / 18 / 18 / 33-102-w
2 phases / black / 1000 / 18 / 18 / 33-102-b
2 phases / natural anodised / 1000 / 18 / 18 / 33-102-s
2 phases / chrome / 2000 / 18 / 18 / 33-103-cr
2 phases / white / 2000 / 18 / 18 / 33-103-w
2 phases / black / 2000 / 18 / 18 / 33-103-b
2 phases / natural anodised / 2000 / 18 / 18 / 33-103-s
2 phases / white / 2950 / 18 / 18 / 33-104-w
2 phases / black / 2950 / 18 / 18 / 33-104-b
2 phases / natural anodised / 2950 / 18 / 18 / 33-104-s

Mini Track - one track countless possibilities
Simply planned, quickly realised and easily installed. The Mini Track track system made by Top Light offers optimum and individual lighting for regular and angular room conditions. This track system is both cleverly designed and variable. It allows optimum illumination of every room shape in accordance to the lighting idea. 4 available colours offer creative freedom and create a wide range of possibilities in combination with 25 different light heads. In Addition, it is possible to cut the high-quality profiles to length as required.

This track system is made up of different modules that can be combined and assembled according to your needs. Further components can be found here.

Please visit us and take a look at the individual track system Mini Track by Top Light in our showroom.

Basics 1 End cap

End cap Colour L mm W mm H mm Article no.
for rail    silver   18      18        18       33-105-s
for rail    white   18      18        18       33-105-w
for rail    black   18      18        18       33-105-b

Simple to plan, quick to implement and easy to install. Top Light's track system Mini Track is ideal for illuminating both - normal and angled room conditions - in an optimal and individual way. This rail system is as well thought-out as it is variable, enabling perfect illumination of every room shape in accordance with the lighting idea. Four available colours offer creative freedom and create a variety of possibilities in addition to the 25 different light heads. Furthermore, the high-quality profile can be shortened as required.

The track system consists of different components which can be combined and assembled according to your needs.

Top Light Mini Track Basics 11 End feed


Variant	Colour	L mm	W mm	H mm	Article no.
End feed	chrome	180	18	18	33-115-cr
End feed	white	180	18	18	33-115-w
End feed	black	180	18	18	33-115-b
End feed	natural anoised	180	18	18	33-115-s

Mini Track lamp Puk Turn Downlight
Quickly planned, fast implemented and easy to install. The Mini Track rail system by Top Light illuminates both regular and angled room conditions in an optimal and individual way. The rail system is both cleverly designed and variable, allowing any shape of room to be illuminated according to the lighting idea. 4 available colors offer creative freedom as well as 25 different light heads. In addition, the high-quality profile can be shortened as required.

The rail system is made up of separate components, making it possible to combine and assemble them according to your needs.

Please do not hesitate to visit our showroom and have a look at the individual track system Mini Track by Top Light.

Top Light Mini Track light fixture Puk Turn Downlight

Article characteristics:
LED: A+ Lumen: ~600 Kelvin: ~ 2.800 Watt: 1x8 Watt

Variant Color Ø mm H mm Article no.
Puk Turn Downlight chrome matt 80 103 2-38001-LED-MT
Puk Turn Downlight chrome 80 103 2-38002-LED-MT
Puk Turn Downlight white/chrome 80 103 2-38004-LED-MT
Puk Turn Downlight black/chrome 80 103 2-38005-LED-MT
