Main page » LED-Lights » Top Light Puk Mini Side Single Indoor Ø 80 mm Wall lamp rotatable configurator, dimmable

Preview: Top Light Puk Mini Side Single Indoor Ø 80 mm Wall lamp rotatable configurator, dimmable

Top Light Puk Mini Side Single Indoor Ø 80 mm Wall lamp rotatable configurator, dimmable

Mobile Preview: Top Light Puk Mini Side Single Indoor Ø 80 mm Wall lamp rotatable configurator, dimmable

Showroom

Top Light Puk Mini Side Single Indoor Ø 80 mm Wall lamp rotatable configurator, dimmable

Product No.:: 7499
Shipping time:: 3 Weeks (abroad may vary)
Stock:: pieces
Prepayment:: 5 % discount (excl. PP)

Body Colour:

Variant:

arm length:

plus remote control for Lightning Control:

Selection Insert top:

Selection Insert bottom:

Equipment color filter top (optional):

Selection Lightning Control:

Selection color filter bottom:

from 174,00 EUR

incl. 19% tax excl. Shipping costs

DESCRIPTION

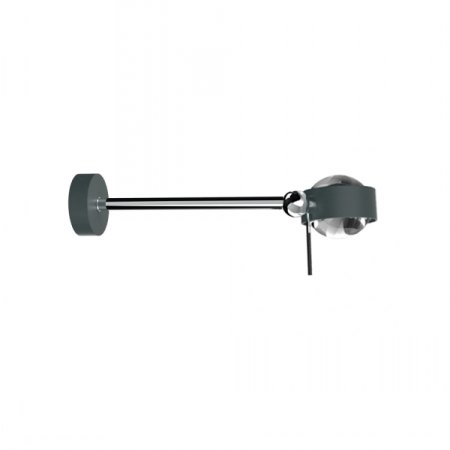

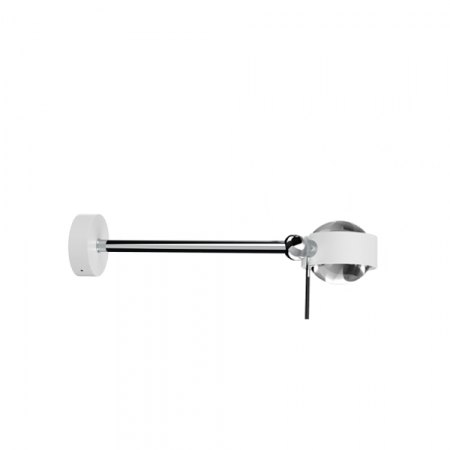

Puk Mini Side Single wallmounted - forms the basis for outstanding lighting design

The rotatable, individually positionable luminaire head via adjustment pin allows you to focus the light on selected focal points. In this way, you can create diffuse mood light when using frosted lenses or define clear areas of light using clear lenses. The Mini Puk Side Single is equipped with energy-saving LED technology or halogen and is dimmable. The different arm lengths of the Puk Mini Side Single guarantee the reliable implementation of your lighting concept. In addition, the model can be completed with various inserts and colour filters.

Item numbers of the mainfacturer:

LED: 10cm: 2-0821-LED (chrome matt) 2-0822-LED (chrome) 2-0823-LED (nickel matt) 2-0822-LED-22 (white matt/chrome) 2-0822-LED-02 (black matt/chrome) 2-0822-LED-23 (anthracite matt/chrome)
20 cm: 2-0831-LED (chrome matt) 2-0832-LED (chrome) 2-0833-LED (nickel matt) 2-0832-LED-22 (white matt/chrome) 2-0832-LED-02 (black matt/chrome) 2-0832-LED-23 (anthracite matt/chrome)
30 cm: 2-0861-LED (chrome matt) 2-0862-LED (chrome) 2-0863-LED (nickel matt) 2-0862-LED-22 (white matt/chrome) 2-0862-LED-02 (black matt/chrome) 2-0862-LED-23 (anthracite matt/chrome)
G9: 10 cm: 2-0821 (chrome matt) 2-0822 (chrome) 2-0823 (nickel matt) 2-0822-22 (white matt/chrome) 2-0822-02 (black matt/chrome) 2-0822-23 (anthracite matt/chrome)
20 cm: 2-0831 (chrome matt) 2-0832 (chrome) 2-0833 (nickel matt) 2-0832-22 (white matt/chrome) 2-0832-02 (black matt/chrome) 2-0832-23 (anthracite matt/chrome)
30 cm: 2-0861 (chrome matt) 2-0862 (chrome) 2-0863 (nickel matt) 2-0862-22 (white matt/chrome) 2-0862-02 (black matt/chrome) 2-0862-23 (anthracite matt/chrome)

TECHNICAL DETAILS

GENERAL DATA

Light direction: Rotatable
Light direction: Indirect / Direct
Material: Metal
Operating voltage: 230V
Protection class: IP20
Lighting Control: ABC
Number of heads: 1
Rotatable : 350
Canopy diameter / height: 65 mm x 20 mm
Luminaire diameter / height : 80 mm x 33 mm
Arm length selectable : 100 mm / 200 mm / 300 mm

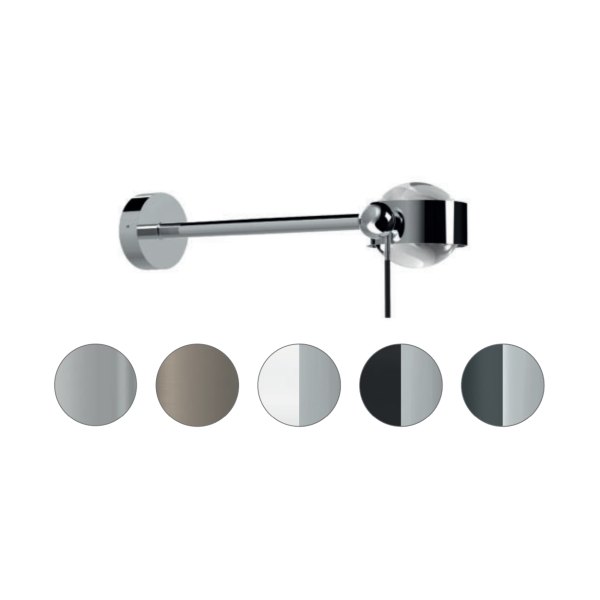

Choice of colours: chrome matt / nickel matt / white matt - chrome / black matt - chrome / anthracite matt

VARIANT DATA LED

Illuminant: 2 x 8 Watt
Illuminant incl.: Yes
Replaceable bulb: No
Socket: Permanently installed
Maximum lamps: 2 x 8 Watt mains voltage
Luminous flux (lumen): 1200lm
Light colour (Kelvin): 2700K
Energy efficiency class: G

VARIANT DATA G 9 FITTING

Illuminant: selectable G9
Bulb incl.: No
Bulb replaceable: Yes
Socket: G9
Maximum lamps: 1 x 33 Watt
Lamp recommendation: Phillips 1.8 Watt or halogen max. 33 Watt
Energy efficiency class: Depending on lamp

PUK MINI 80 ACCESSORIES

Optionally selectable, the luminaire body can also be individually configured ( lens, glass, colour filter, Lightning Control)Insert variants: Lens clear / Lens frosted on one side / Glass frosted on both sides ( does not fit under lens )

Colour filters (only under glass or lens): red, magenta, yellow, blue, green

Top Light Lightning Control: ABC
Module A: Integrated, incl. canopy adjustment with module.
Module B: External flush-mounted / wooden wall box, incl. cover plate and module.
Module C: External for any mounting, incl. module.

Remote control: portable + wall bracket black / white

TOP LIGHT WARRANTY

Top Light grants a 5-year factory warranty out of conviction

On all luminaires and their technical function
On all permanently installed LEDs in case of total failure
We reserve the right to make technical changes
Our general terms and conditions still apply
Please find here the current Top Light services on the manufacturer's website
